The D-pHi Series™
4-20 mA Differential ORP Sensor
If you want a user-friendly, low-maintenance ORP monitoring system, then this 4-20 mA ORP (redox) sensor is your answer.
Enjoy hassle-free installation, calibration, and cleaning. Avoid headaches like ground loops, electrode poisoning, and electrode replacement thanks to the differential electrode. With all these benefits, a 2-year warranty, and exceptional product support*, this ORP sensor serves up incredible value for your business.
Oh, and it is designed to last 10+ years.
Order now to experience the D-phi difference.
*Support includes comprehensive troubleshooting resources, responsive customer service, and discounted rebuilding or replacement services in the event of damage.
Only $629 USD
Applications
Recommended for process control, wastewater, aquaculture, hydroponics, environmental remediation, and other applications requiring user-friendly and low-maintenance ORP sensors.
Have a question?
We have knowledgeable engineers ready to help with your project!
Business hours:
9 am to 5 pm PST – Monday through Friday
D-phi Series ORP Sensor Features
- Linear 4-20 mA output
- Simple to use and easy to calibrate
- Accurate over long distances
- Compatible with wide variety of dataloggers, PLCs, SCADA, and IoT systems.
- Differential electrode technology (Click to learn more)
- Refillable electrode that never needs replacement
- 1-min refill procedure every 1-2 months for continuous reliable performance
- Reduces the need for frequent calibration checks and recalibrations, leading to lower maintenance overall
- Estimated maintenance cost of only $36-85 USD per year
- Click to view Reference Refill Kit
- Chemical-resistant titanium and Delrin® housing (PVDF available)
- Built-in 0-50°C temperature sensor (secondary 4-20 mA output)
- 3/4″ or 1″ NPT backend (depending on model)
- Fully submersible to 100 psi and 150°F
- Dry storage
- Automatic Temperature Compensation (ATC)
- 600 VDC electrical isolation
- 2-wire connection with Reversible Input Protection

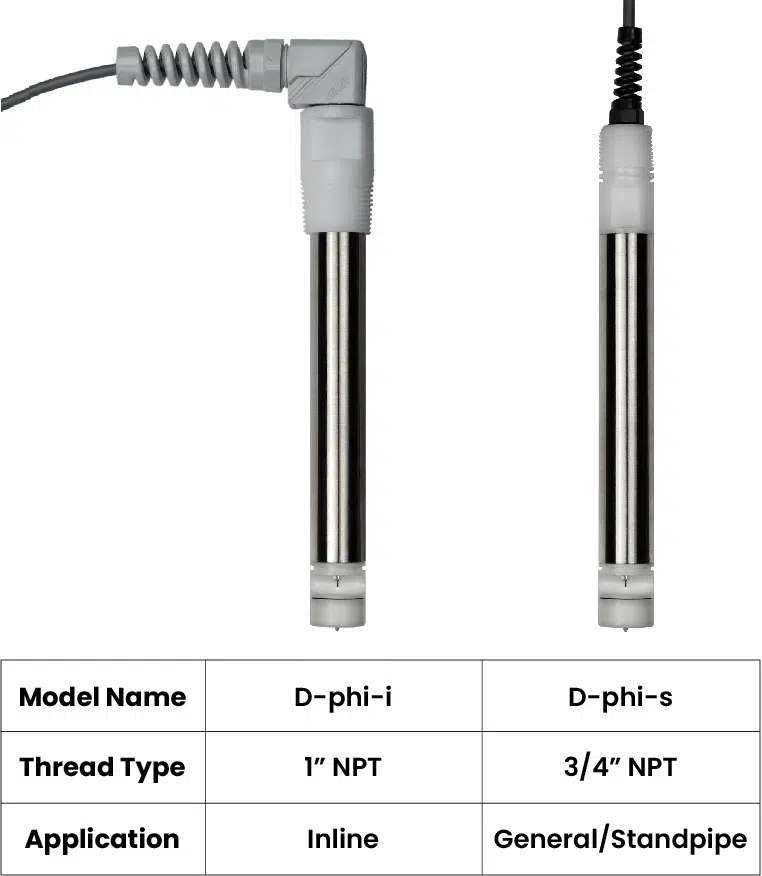

SubmersionThe d-phi Series is fully submersible up to 100 psi Model D-phi-s |

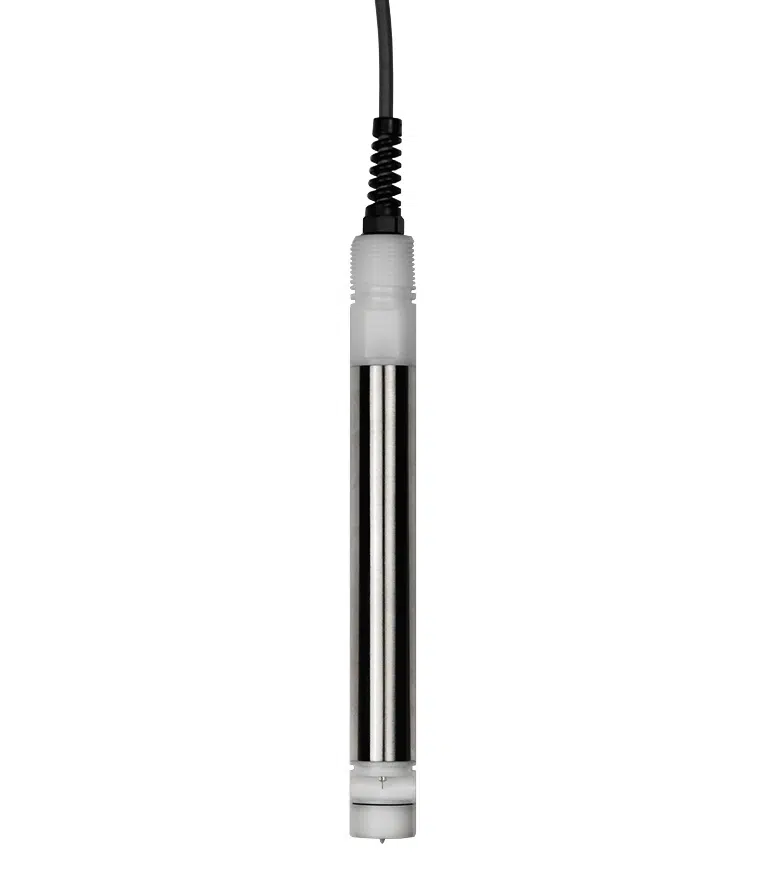

StandpipeModel D-phi-s has a 3/4″ NPT thread for standpipe mounting. Model D-phi-s |

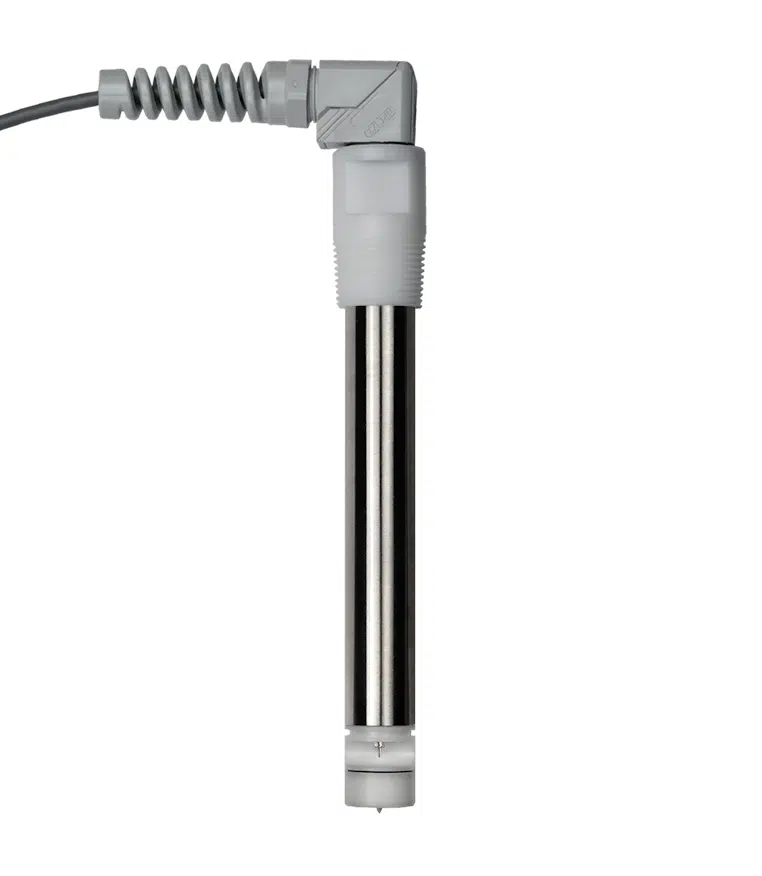

InlineMount model D-phi-i inline up to 100psi with the built-in 1″ NPT thread. Model D-phi-i |
Additional Resources
ORP Sensor
ORP Range | -1000 to +1000 mV |
Output | 4-20 mA | 2-wire |
Electrode Type | Differential |
Wetted Materials | Delrin®, titanium, glass, platinum, Viton™ |
Operational Temperature Range | 32-155°F (0-70°C) |
Thread Type | 3/4 inch MNPT or 1 inch MNPT |
Max Flow Rate | 10 ft per second |
Pressure Range | 0-100 psi |
Automatic Temperature Compensation | 32-155°F (0-70°C) |
Power Supply Voltage | 8-40 VDC |
Warm-up Time | 2 seconds |
Response time | 95% < 5 seconds |
Length | 9.25 in (23.5 cm) |
Width | 1.00 in (2.54 cm) max. |
Weight (No cable) | 0.50 lbs (0.227 kg) |
Linearity | ±4 mV* |
Accuracy | ±4 mV* |
Sensitivity | 1 mV |
*After proper calibration
Cable
Cable Material | Polyurethane |
Type | Kevlar® reinforced, water blocked, shielded, twisted-pair wiring |
Maximum Distance | 3 miles |
Resistance per 1000 ft (304.8 m) | 26 Ohms |
Replaceable? |
No |
